Jack-up Offshore Platform

Drilling Platform Wire Rope Tensioner Cylinder

Wire ropes on a jack-up platform carry the full weight of the platform during jacking. This cylinder tensions them through a pulley system — 8,500 KN of thrust force, a 93.5% rod-to-bore ratio, and the highest force output in the jack-up hydraulic system.

≤620mmBore

≤580mmRod (93.5%)

8,500 KNMax Thrust

3 Configs889/1112/1245KN

Technical Specifications

Parameter	Specification
Product Name	Drilling Platform Steel Wire Rope Tensioner Cylinder
Features	Provide thrust force and tension to wire rope through pulley
Bore Diameter	Up to 620 mm
Rod Diameter	Up to 580 mm (93.5% rod ratio)
Thrust Force	Maximum 8,500 KN
Tension Configurations	889 KN, 1,112 KN, 1,245 KN (and custom)
Application	Jack-up Offshore Platform / Drilling Platform

How Wire Rope Tensioning Works on a Jack-up Platform

Jack-up offshore drilling platform with wire rope tensioning system

Some jack-up platforms use a wire-rope-and-pulley jacking system instead of (or in combination with) a rack-and-pinion mechanism. Steel wire ropes run along each leg, pass over pulleys at the top, and are anchored to the platform hull. The tensioner cylinder pushes against the rope anchor point, applying thrust force that is transferred through the pulley system to tension the wire ropes — this tension is what holds the platform at elevation.

The 93.5% rod-to-bore ratio (580 mm rod inside 620 mm bore) is the highest in the entire offshore hydraulic cylinder range. This extreme ratio produces a very small annular area — meaning the cylinder is designed almost exclusively for high thrust force on the extension stroke, with minimal retraction force. The wire rope only needs tension in one direction.

Multiple Tension Configurations

Different platforms require different wire rope tensions depending on platform weight, leg count, rope diameter, and pulley arrangement. Korea Ever-Power offers standard tension configurations and custom designs:

889 KN

Light-duty jack-up barges and maintenance platforms. Smaller wire rope diameter, lower platform weight.

1,112 KN

Mid-range drilling platforms. Standard offshore exploration and production installations.

1,245 KN

Heavy-duty platforms with large topside equipment loads or harsh weather operating environments.

Key Design Advantages

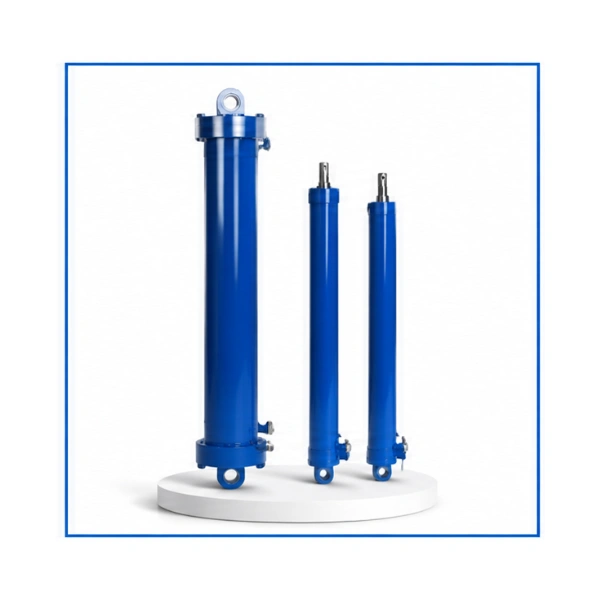

Drilling Platform Steel Wire Rope Tensioner Cylinder

93.5% rod-to-bore ratio — maximises the bore-side piston area for thrust force while leaving a minimal annular area. The cylinder produces 8,500 KN of push force at 32 MPa — among the highest of any single hydraulic cylinder in offshore service.
Forged barrel and rod — the barrel is forged from a single billet, deep-hole bored, and honed. The 580 mm rod is forged, turned, and chrome-plated (or laser-clad) as a single piece. No welded joints in the load path.
️ Marine-grade protection — the tensioner cylinder operates inside the platform structure but is exposed to salt air, condensation, and occasional wave splash. Anti-corrosion treatment on all external and internal surfaces.
⚙️ Integrated pressure relief — prevents rope overtension that could snap the wire or damage the pulley system. The relief valve setting is calibrated to the specific rope's breaking strength safety factor (typically 3:1 to 5:1).

Wire Rope Tensioner OEM & ODM

Provide the platform model, rope diameter and grade, required tension per rope, pulley arrangement, number of tensioner cylinders, system pressure, and classification requirement. Korea Ever-Power delivers the complete tensioner cylinder set with matched force output, test certificates, and spare seal kits. Browse the full offshore hydraulic cylinder range for lifting and bolt cylinders to complete the jacking system.

Korea Ever-Power heavy-duty hydraulic cylinder factory

Hydraulic cylinder configurations for offshore drilling

Frequently Asked Questions

What does 93.5% rod-to-bore ratio mean?

The rod diameter (580 mm) is 93.5% of the bore diameter (620 mm). This leaves a very thin annular space around the rod — just 20 mm per side. The design maximises the bore-side piston area for thrust while accepting minimal retraction force. It is the engineering signature of a single-direction, high-force tensioner.

How many tensioner cylinders does a platform use?

Typically 2–4 tensioner cylinders per leg, depending on the number of wire ropes and the total tension requirement. A 3-leg platform may use 6–12 tensioner cylinders in total.

Can custom tension values be specified?

Yes — the 889 KN, 1,112 KN, and 1,245 KN are standard configurations. Any tension value can be specified by adjusting the bore, rod, and system pressure. Korea Ever-Power calculates the optimal cylinder dimensions for the required tension and safety factor.

What happens if a wire rope tension is lost?

Loss of tension on one rope transfers the load to the remaining ropes and jacking mechanisms. The tensioner system includes pressure monitoring — any sudden pressure drop triggers an alarm and automatic hold on the jacking operation. Redundancy is built into the system design.

What classification approvals are available?

BV, DNV, LR, ABS, and CCS. The tensioner cylinder is a safety-critical component — full material traceability, witnessed hydrostatic testing, and dimensional verification are standard for all classification submissions.
