Mobile Machinery Hydraulic Cylinder

Refuse Truck Locking Cylinder
EP-HCYY11112032 · Φ63mm · Stroke 160mm · 20 MPa · 15 kg

The hydraulic lock that holds the hopper body and tailgate firmly in position during waste collection and road transport. Without it, the loaded hopper could shift during braking or cornering — creating a safety hazard and spilling waste. The locking cylinder engages and disengages hydraulically from the cab, allowing the driver to lock the body for transport and unlock it for emptying at the transfer station.

Φ63Bore

160mmStroke

20 MPaWorking Pressure

30 MPaMax Pressure

15 kgWeight

Technical Specifications

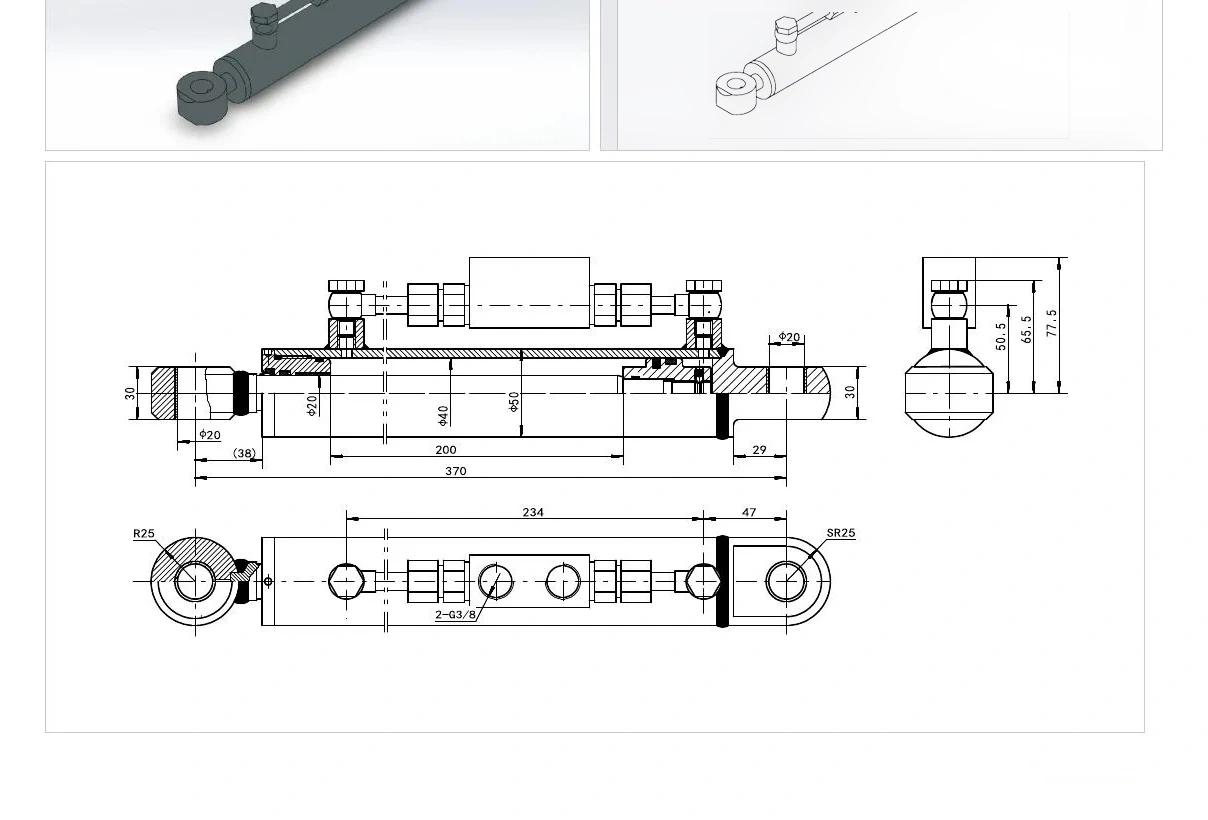

Refuse Truck Locking Cylinder | EP-HCYY11112032 Model Dimension Drawing ▲ Dimension Drawing

Parameter	Specification
Product Name	Refuse Truck Locking Cylinder
Cylinder Model	EP-HCYY11112032
Bore (D)	Φ63 mm
Rod (d)	Φ40 mm
Stroke (S)	160 mm
Installation Distance (L)	440 mm
Working Pressure	20 MPa
Maximum Withstand Pressure	30 MPa
Weight	15 kg
Additional Specification	Φ40×Φ20×53, Installation 245 mm
Application	Rear-Loading Refuse Compression Truck

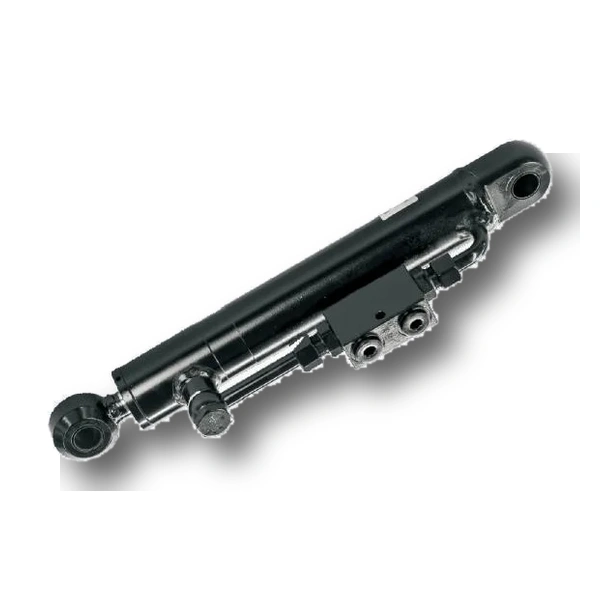

▲ Refuse Truck Locking Cylinder | EP-HCYY11112032 Model

How the Locking Cylinder Secures the Refuse Truck Body

Refuse compression truck hydraulic system

A rear-loading refuse compression truck has a hopper body that tips or lifts for emptying. During collection runs, this body must be locked rigidly to the chassis — it contains several tonnes of compressed waste, and any movement during driving creates dangerous load shift.

The locking cylinder inserts a steel locking pin or engages a latch mechanism that mechanically connects the hopper body to the chassis frame. The 160 mm stroke provides enough travel to fully engage the lock through the chassis and body alignment holes. At 20 MPa, the Φ63 bore produces approximately 62 kN of locking force — more than enough to hold the pin securely against vibration and dynamic loads during driving.

The driver operates the lock from the cab — engaging it before driving and releasing it at the disposal site. The cylinder must be reliable in all weather conditions: rain, frost, road salt, and the corrosive environment created by waste leachate. Browse the full mobile machinery hydraulic cylinder range.

Why Hydraulic Locking Instead of Mechanical Latches?

Cab-Operated Safety

The driver locks and unlocks the body without leaving the cab — eliminating the risk of being struck by the tailgate or hopper during manual latch engagement. Hydraulic operation also ensures consistent locking force every time.

Positive Force Engagement

The 62 kN hydraulic force drives the locking pin fully home — even if alignment holes are slightly misaligned from body deflection or wear. Mechanical latches rely on gravity or springs, which can fail to engage fully.

Corrosion-Resistant Operation

Mechanical latches corrode quickly in the refuse truck environment (waste acids, road salt, moisture). The hydraulic cylinder's sealed design protects the mechanism, and the hard-chrome rod resists the corrosive environment.

Refuse Truck Locking Cylinder dimensions

Sanitation Vehicle Cylinder Family

Korea Ever-Power manufactures three hydraulic cylinder types for refuse compression trucks:

EP-HCYY11112032 ← this product

Locking Cyl. Φ63, 15kg

EP-HCYY11112033

Reverse Thrust Cyl. Φ220, 210kg

EP-HCYY11112034

Forward Thrust Cyl. Φ90, 25kg

Why Choose Korea Ever-Power

Korea Ever-Power is a professional hydraulic cylinder manufacturer and supplier, specialising in forklift hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, offshore cylinders, and industrial engineering cylinders. Our production facilities are equipped with composite machining centres, multi-station welding robots, automated assembly lines, specialised cylinder testing machines, and a dedicated quality inspection area — ensuring every cylinder meets OEM-grade performance standards.

Korea Ever-Power hydraulic cylinder manufacturing facility

Korea Ever-Power forklift tilt cylinders are manufactured to the same specifications and quality standards as original equipment cylinders fitted to major forklift brands worldwide. Every cylinder is 100% hydrostatic pressure tested, dimensionally inspected, and shipped with a test certificate and seal kit. Contact the Korea Ever-Power team for pricing and lead time.

Frequently Asked Questions

How many locking cylinders does a refuse truck use?

Typically 2–4, depending on the body size and manufacturer. Larger rear-loaders may use 4 locking cylinders (two per side) to distribute the clamping force. Contact Korea Ever-Power with your truck model for the exact configuration.

What is the difference between the Φ63 and Φ40 bore specifications?

The Φ63 bore (160 mm stroke, 440 mm installation distance) is for larger refuse trucks with heavier body weights. The Φ40 bore (53 mm stroke, 245 mm installation distance) is for lighter vehicles or auxiliary locking positions with lower force requirements.

How often does the locking cylinder need replacement?

The locking cylinder cycles 2–4 times per collection route (lock for driving, unlock for emptying, repeat). At 1–2 routes per day, the annual cycle count is relatively low (1,000–3,000). The primary failure mode is seal degradation from exposure to waste leachate and road salt — typically after 3–5 years.

Can I order the complete refuse truck cylinder set?

Yes — locking, reverse thrust, and forward thrust cylinders can be ordered together. Browse the mobile machinery hydraulic cylinder range.
