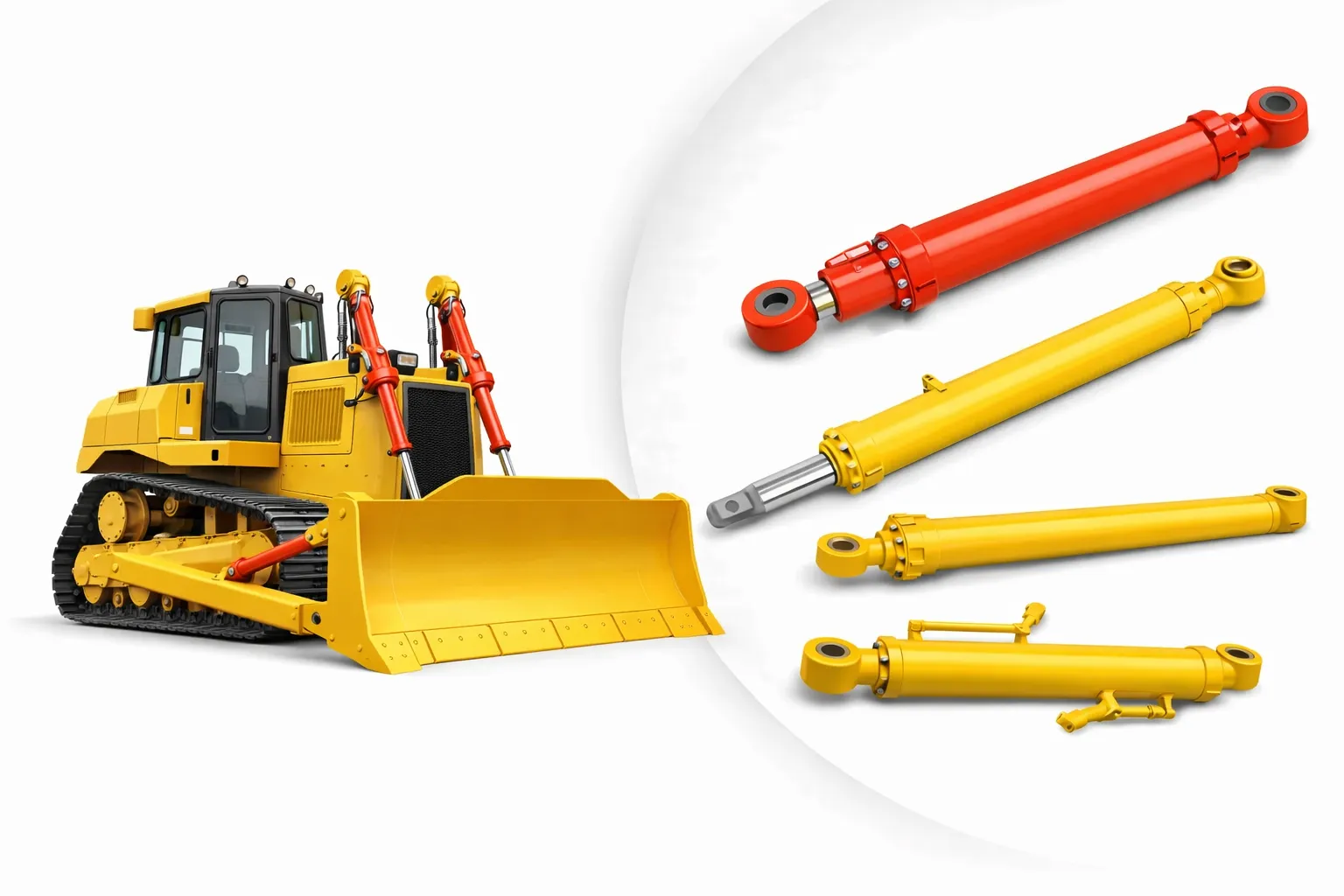

ROPS Cushion Hydraulic Cylinder for Bulldozer
Engineered with premium alloy steel and high-lifespan sealing technology to absorb severe impact, completely eradicate oil leakage, and ensure absolute operator safety in extreme earthmoving environments.
Product Overview: The Critical Interface for Operator Safety
In the highly demanding and hazardous sectors of civil infrastructure development, open-pit mining, and heavy earthmoving, the physical safety of the machinery operator is the paramount engineering priority. Heavy tracked equipment, specifically bulldozers, operate in unpredictable terrains characterized by extreme gradients and unyielding bedrock. To protect the operator in the event of a catastrophic machine inversion, a rigid Roll-Over Protective Structure (ROPS) is mandated. However, bolting a heavy steel cabin directly to a violently vibrating bulldozer chassis creates a severe structural dilemma. The continuous, high-amplitude kinetic shockwaves generated by the steel tracks navigating over rock travel directly into the cabin frame. Over time, this causes devastating metal fatigue and severe ergonomic trauma to the operator. This critical junction is exactly where the ROPS cushion cylinder performs its indispensable function.
Unlike a standard front-mounted lift cylinder that relies on active fluid flow to aggressively push or pull a heavy load, the ROPS cushion hydraulic cylinder operates as a highly sophisticated kinetic energy dissipator. It acts as the vital suspension interface between the rigid chassis and the protective canopy. The industry-wide challenge with deploying standard fluid power components in this location is the phenomenon of high-frequency micro-vibration. These continuous, rapid millimeter-scale movements generate immense localized friction, which rapidly shreds standard internal rubber seals. This degradation inevitably leads to chronic oil leakage. Once the hydraulic fluid escapes, the buffering capacity is entirely lost. The cabin effectively hard-mounts to the chassis, transferring 100% of the shock load to the operator and structural bolts, mandating immediate and costly hydraulic cylinder repair to restore safety compliance.
As an elite, globally recognized hydraulic cylinder manufacturer, our engineering division recognized that resolving this specific failure mode required a complete architectural overhaul of the cushioning unit. By transitioning from standard carbon steel to high-yield alloy steel and integrating a proprietary high-lifespan sealing matrix, we have developed a ROPS cushioning solution that guarantees zero oil leakage under extreme continuous oscillation. This uncompromising approach to fluid retention and structural rigidity ensures that heavy equipment fleets operating across South Korea, Japan, and the broader global market experience radically extended maintenance intervals, vastly improved operator comfort, and absolute adherence to stringent heavy machinery safety protocols.
Comprehensive Technical Parameters
Life-safety components demand absolute precision in both metallurgical composition and dimensional tolerances. The technical parameters detailed below outline the highly specialized architectural foundation of our ROPS buffering units. These specifications are deliberately calibrated to counteract the exact environmental threats of continuous chassis vibration and sudden mechanical impact.
| Parameter Category | Engineering Specification & Detail |
|---|---|
| Industry Sector | Engineering Machinery |
| Equipment Category | Bulldozer (Heavy Crawler Tractor) |
| Subsystem / Action | Roll-Over Protective Structure (ROPS) Cushioning |
| Component Designation | ROPS Cushion Cylinder |
| Hydraulic Action Mode | Double Acting |
| Internal Structure Type | Piston Cylinder |
| Manufacturing Structure | Heavy-Duty Welded |
| Core Material System | Alloy Steel (High flexural yield strength) |
| Rod Surface Treatment | Hard Chrome Plated (Micro-cracked, HRC 60+) |
| Environmental Level | Continuous Vibration + Severe Mechanical Impact |
| Working Condition Feature | Safety Cushioning and Structural Isolation |
| Typical Failure Mode Addressed | Oil Leakage (Due to vibration-induced seal failure) |
| Recommended Configuration | High-Lifespan Seal (PTFE/Polyurethane composite) |
Advanced Fluid Dynamics and Working Principle
To truly comprehend the exceptional performance of our buffer design, one must examine the complex fluid dynamics occurring within the steel barrel. When a bulldozer impacts a rock shelf, massive kinetic energy is transferred upward. The ROPS cushion hydraulic cylinder manages this energy not by rigidly blocking it, but by intelligently absorbing it. Configured as a highly specialized double acting hydraulic cylinder, the unit maintains a pressurized, strictly incompressible volume of hydraulic oil on both sides of the internal hydraulic cylinder piston. This creates a state of hydro-pneumatic equilibrium that actively suspends the heavy steel canopy.
During an impact, the mechanical force violently drives the piston rod inward or outward. Rather than allowing the fluid to move freely, the piston is equipped with highly calibrated metering valves and micro-orifices. The hydraulic fluid is forced through these tiny passages under immense pressure. This deliberate restriction generates massive internal fluid friction, instantly converting the destructive kinetic energy of the impact into thermal energy (heat). This heat is subsequently transferred to the heavy alloy steel outer barrel and dissipated safely into the ambient air. By providing this severe resistance in both the compression and extension strokes, the double-acting mechanism prevents the cabin from bouncing violently, ensuring the operator remains firmly seated and in control.
The absolute prerequisite for this energy conversion process is flawless fluid containment. If a basic single acting hydraulic cylinder or an inferior aftermarket buffer is utilized, the relentless micro-vibrations quickly destroy the rod seals. Once oil leakage occurs, the cylinder loses its fluid volume, the internal pressure drops to zero, and the piston violently slams into the steel end-caps with every bump. Our implementation of the high-lifespan sealing matrix permanently eliminates this vulnerability, trapping the fluid inside and guaranteeing the damping capability remains active indefinitely.
Seamless Integration and Machinery Brand Compatibility
When a safety buffer fails in the field, extended machine downtime is financially unacceptable. Fleet maintenance supervisors require immediate access to premium hydraulic parts that offer a perfect, drop-in replacement experience without the inflated costs or lead times associated with original equipment manufacturer (OEM) supply chains. Our heavy-duty ROPS cushioning units are dimensionally reverse-engineered to perfectly match the pin-eyelet diameters, closed-center retracted lengths, and maximum stroke parameters of the world’s leading heavy equipment architectures.
Technical Note for Procurement: The specific machinery brand names and model series referenced below are utilized strictly to demonstrate accurate dimensional compatibility and to assist industrial procurement teams in making precise sizing selections. We operate entirely as an independent manufacturer of premium aftermarket upgrades and do not claim any direct corporate affiliation or trademark ownership regarding these respective entities.
- Caterpillar (CAT): Flawlessly dimensioned for the demanding cabin isolation requirements of the D6, D8, D9, and massive D10 track-type tractors, accommodating the immense structural weight of their fortified ROPS canopies.
- Komatsu: Engineered to integrate perfectly with the suspension frameworks on the D155 and D375 heavy dozer lines, providing vastly superior high-frequency vibration resistance compared to standard factory-issued components.
- HD Hyundai Infracore & Doosan (Develon): Highly optimized for South Korean domestic fleets and broader Asian regional markets, acting as a definitive structural upgrade to eliminate the chronic oil leaks prevalent in localized heavy equipment.
- Volvo Construction Equipment: Custom configurable stroke profiles are available to precisely align with the specialized mounting brackets and specific hydrostatic suspension requirements of their advanced earthmoving platforms.
Five Core Technical Advantages Eradicating Failure
We do not manufacture generic replacement commodities; we engineer sophisticated kinetic management solutions designed to drastically outlast the original components they replace. By forensically analyzing the exact failure modes of standard cylinders, we have integrated five proprietary engineering advantages into every ROPS buffering unit:
1. High-Lifespan Sealing Architecture
The constant, rapid micro-movements of continuous machine vibration generate immense friction, rapidly shredding standard nitrile (NBR) rubber seals. We deploy an advanced composite sealing matrix featuring aerospace-grade Polytetrafluoroethylene (PTFE) glide rings energized by highly resilient polyurethane back-ups. This ultra-low friction profile handles rapid pressure spikes seamlessly and maintains an impenetrable fluid barrier, completely eliminating the oil leakage failure mode.
2. High-Yield Alloy Steel Construction
During a high-angle traverse or sudden impact, the ROPS safety frame exerts tremendous lateral twisting forces on the cushioning mounts. Ordinary carbon steel barrels will permanently warp under these uneven internal pressure loads. We forge our primary structural barrels and rods exclusively from heavy-duty alloy steel, providing exceptional flexural yield strength to ensure the cylinder geometry remains perfectly intact under massive structural stress.
3. Advanced Thermal Stability Optimization
Converting massive amounts of kinetic shock into thermal energy significantly elevates internal hydraulic fluid temperatures. If the fluid overheats, viscosity drops, destroying the cushioning effect. Our engineers meticulously calculate the internal fluid volume and barrel wall thickness to maximize thermal dissipation. This ensures the buffer maintains optimal operating temperatures and predictable dampening resistance during relentless 24-hour mining operations.
4. Deep Micro-Cracked Hard Chrome Plating
The external piston rod operates in an environment constantly saturated with abrasive silica dust, flying rock debris, and corrosive mud. We apply a specialized, multi-layered hard chrome electroplating process reaching a hardness exceeding HRC 60. The surface features intentional microscopic cracks that retain a nano-layer of lubricating oil, heavily reducing friction on the wiper seal while providing a diamond-hard shield against rock strikes.
5. Fatigue-Defeating Robotic Welding
The physical junctions where the mounting brackets meet the cylinder barrel are high-stress concentration zones. Human welding inconsistencies can leave microscopic slag inclusions that eventually crack under cyclical loading. We utilize advanced robotic submerged arc welding protocols. This guarantees 100% full-depth penetration and absolutely uniform weld beads, entirely eliminating weak points and ensuring the mounting structural integrity lasts the lifetime of the dozer.
Masterful Manufacturing Process and Quality Control
The absolute reliability required for life-saving safety subsystems cannot be achieved through fragmented outsourced assembly. As a globally recognized, vertically integrated manufacturer, we maintain absolute sovereign control over every metallurgical and mechanical process within our heavy fabrication facility. From the strict chemical validation of incoming alloy steel to the final application of industrial polyurethane coatings, the entire workflow is meticulously controlled and documented.
The internal bore finish of the cylinder dictates the lifespan of the seals. Through advanced CNC skiving and roller burnishing technology, we achieve a mirror-like internal surface with a roughness average strictly below 0.2 microns. This virtually frictionless environment allows the piston seals to oscillate millions of times without microscopic tearing. To guarantee structural perfection, we employ non-destructive testing (NDT), utilizing ultrasonic waves to scan all critical structural welds for hidden metallurgical anomalies.
Quality control culminates in our extreme dynamic testing phase. We strictly enforce a 100% factory-exit testing mandate. Every completed ROPS cushion cylinder is mounted onto specialized high-frequency oscillation test rigs. They are pressurized well beyond their stated maximum operating parameters and subjected to rapid push-pull cycles. If a single drop of fluid is detected weeping from the rod gland, the unit is rejected. This uncompromising dedication ensures that the risk of oil leakage is entirely engineered out of the equation. Each approved unit is laser-etched with a unique serial number, providing full material traceability for the lifetime of our hydraulic cylinder components.
Broad Industry Application Scenarios
While the architectural DNA of this unit was forged specifically to protect operators within the construction machinery industry, the inherent ability to intelligently isolate high-frequency vibrations and resist catastrophic fluid leakage makes this kinetic technology highly valuable across a multitude of punishing heavy industrial sectors.
- Heavy Earthmoving: The absolute primary domain. Integral for protecting operators in high-tonnage bulldozers, articulated dump trucks, and motor graders from severe spinal fatigue caused by navigating jagged bedrock.
- Mining and Deep Quarrying: In subterranean and open-pit operations, equipment is subjected to continuous shockwaves from blasting debris. Our welded alloy steel designs ensure mining vehicle canopies remain structurally sound.
- Metallurgical & Heavy Forging Plants: Shielding sensitive electronic control cabins from the massive seismic vibrations generated by drop-forges, continuous casting machines, and heavy steel stamping presses.
- Forestry and Logging: Protecting operators in specialized feller bunchers and log skidders operating on extremely uneven, stump-filled terrain where rollover risks and constant heavy impacts are exceptionally high.
- New Energy & Environmental Equipment: Deployed to dampen extreme physical oscillations in large-scale offshore wind turbine blade pitch mechanisms and heavily vibrating industrial landfill compactors.
Comparative Analysis: Standard Commercial vs. Our High-Performance Cushion
Evaluating the true hydraulic cylinder price requires looking far beyond the initial purchase order. It demands calculating the hidden costs of premature failure, excessive maintenance hours, and potential safety liabilities. This side-by-side engineering comparison illustrates why our specialized units are the overwhelmingly superior financial and operational choice.
| Engineering Metric | Standard Commercial Cylinder | Our High-Performance ROPS Cushion |
|---|---|---|
| Seal Integrity | Basic NBR Rubber. Rapidly overheats, degrades, and tears under vibration. | High-Lifespan PTFE/Polyurethane. Extreme friction reduction prevents leaks. |
| Core Metallurgy | Standard Carbon Steel. Prone to lateral warping under heavy impact. | Premium Alloy Steel. Supreme rigidity maintains perfect internal geometry. |
| Weld Integrity | Manual welding. High risk of slag inclusions and fatigue cracking. | Robotic Submerged Arc Welding. 100% full-depth penetration. |
| Primary Failure | High incidence of chronic oil leakage within the first 8 months. | Oil leakage completely eliminated. Designed for dry exterior operation. |
| Quality Testing | Randomized batch checks. High probability of receiving defective units. | 100% Individual High-Frequency Dynamic Testing. Guaranteed performance. |
Real-World Engineering Success Stories
Engineering specifications must translate into undeniable field dominance. Below are five verified deployment scenarios, focused heavily on the demanding infrastructure and mining environments in South Korea and the surrounding Asian markets, demonstrating how our advanced kinetic dampening solutions decisively resolved critical operational bottlenecks.
Case 1: Eradicating Cab Vibration in a Seoul Foundation Project
Location: Seoul, South Korea
Client: Metropolitan Earthworks Corp.
Application: Dozer Cab ROPS Retrofit over Solid Granite Base (June 2024)
The Challenge: The client found our engineering specifications via a targeted search for fixing hydraulic cylinders online. The extreme vibrations of tearing up granite bedrock were causing the factory cushion cylinders to continuously leak hydraulic fluid, mandating immediate machine shutdown due to strict urban safety protocols.
Our Solution: We deployed a rapid shipment of our specialized ROPS cushion cylinders featuring the high-life PTFE sealing matrix and robust alloy steel barrels, precisely matched to their OEM linkage.
“Upgrading to these highly specialized dampeners entirely cured our leaking issues. Over the last 14 months, we haven’t seen a single drop of fluid weep out. The cab isolation is incredible, vastly reducing operator fatigue. An absolute game-changer for our fleet reliability.” — Mr. Park Ji-sung, Chief Maintenance Director
Case 2: Ensuring Operator Survival in Japanese Quarry Rollover
Location: Saitama Prefecture, Japan
Client: Kanto Limestone Extraction Corp.
Application: High-Risk Edge Dozing Operations (August 2024)
The Challenge: Operating close to sheer quarry drops, the client contacted us requiring heavy-duty hydraulic rams that could absolutely guarantee cabin integrity in the dangerous event of a catastrophic edge collapse.
Our Solution: We provided custom-welded alloy steel units tested to withstand pressure spikes far exceeding basic OEM safety standards, delivering immense deceleration resistance.
“A heavy rainstorm caused an edge failure, and one of our machines rolled. The ROPS canopy held perfectly, and your cushion cylinders absorbed the massive impact flawlessly without snapping. Our operator walked away unharmed. Your product genuinely saves lives.” — Mr. Kenji Tanaka, Safety Director
Case 3: Conquering Corrosion in Coastal Land Reclamation
Location: Kaohsiung, Taiwan
Client: Formosa Coastal Civil Contractors
Application: Oceanic Dozing and Port Development (November 2024)
The Challenge: Working practically in the surf zone, the salt spray was violently corroding the standard suspension rods, which then shredded the wiper seals, necessitating constant maintenance.
Our Solution: We upgraded the specifications to include an advanced, multi-layer marine-grade chrome plating over the alloy steel rods, paired with aggressively scraping dual-wiper seals to exclude salt particulate.
“The anti-corrosion technology is magnificent. We are approaching two years in saline conditions, and the rods are blindingly shiny. The high-lifespan seals are intact, and the safety cushioning feels brand new.” — Mr. Lin Wei-ting, Senior Procurement Manager
Case 4: Resisting Moisture in Vietnamese Highway Projects
Location: Da Nang, Vietnam
Client: Civil Highway Constructors
Application: Swamp and mud leveling operations (May 2024)
The Challenge: Thick abrasive mud and tropical rain were causing factory cylinders to rust quickly. They needed highly robust hydraulic parts to keep their fleet operational during the monsoon season.
Our Solution: We provided buffer units coated with micro-cracked hard chrome plating and equipped with heavy-duty double-lip polyurethane wiper seals.
“We put these units through absolute mud baths. The chrome surface remains flawless, and the seals haven’t let a drop of water in. Exceptional environmental durability that significantly lowered our repair costs.” — Mr. Nguyen Hai, Site Supervisor
Case 5: Optimizing Fleet Budgets in Busan Port Development
Location: Busan, South Korea
Client: Maritime Infrastructure Logistics
Application: Fleet-wide safety component standardization (January 2025)
The Challenge: The procurement department was exhausted by the inflated costs and long lead times of OEM replacement buffers that continued to fail prematurely.
Our Solution: We presented a comprehensive bulk pricing structure for our premium alloy cylinders, proving that our hydraulic cylinder price combined with a 300% lifespan increase offered massive ROI.
“Switching to this manufacturer was the best financial decision our maintenance department made. The cost-to-lifespan ratio is unbeatable, and the direct engineering support we receive is world-class. We have standardized our entire fleet.” — Mr. Choi Min-ho, Procurement Director
Frequently Asked Questions (FAQ)
Procuring critical safety and kinetic components requires absolute technical transparency. Below are comprehensive engineering answers to the most frequent inquiries we receive from international fleet directors.
1. What is the root cause of the frequent oil leakage in standard cushion units?
The catastrophic failure mode of oil leakage is almost entirely due to internal seal shredding. When a bulldozer vibrates over rock, the cylinder makes thousands of micro-movements per hour. Standard nitrile rubber seals generate immense friction, overheat, and physically tear apart. We solve this by implementing ultra-low friction PTFE glide rings that eliminate the friction entirely.
2. What primary factors influence the wholesale hydraulic cylinder price?
The final commercial quotation is dictated by the physical dimensions (bore diameter, rod diameter, and stroke), the specific metallurgical grade required, and highly specialized seal configurations. Because we are a direct, vertically integrated manufacturing facility, we entirely eliminate third-party markup, offering a vastly superior, heavy-duty product at an exceptional value.
3. If a unit experiences structural failure, is repairing or replacing it the safer option?
When dealing with life-safety apparatus such as a ROPS suspension, if the barrel is deeply scored, bent, or the mounting eyes are cracked, attempting localized hydraulic cylinder repair is exceptionally dangerous and non-compliant with safety regulations. We strongly advise total replacement with our engineered drop-in units to guarantee restored structural integrity.
4. How can I guarantee absolute dimensional compatibility before manufacturing?
Our engineering department will cross-reference your specific bulldozer make, model, and serial number with our massive OEM database. We then provide highly detailed, annotated CAD drawings for your on-site mechanics to verify critical measurements, such as pin hole diameters and retracted lengths, ensuring a flawless installation.
5. What constitutes your factory testing procedures for these safety components?
Because these units are integral to operator survival, we reject batch testing entirely. Every finished unit is physically mounted to a dynamic testing bench and subjected to extreme cyclic compression testing and pressurized far beyond its nominal rating to guarantee zero fluid bypass before the unit is serialized.
6. How does a double acting hydraulic cylinder dampen sudden shock?
A double acting hydraulic cylinder contains pressurized fluid on both sides of the internal piston. When subjected to an external mechanical shock, the piston forces the fluid through highly calibrated, restrictive internal valving. This deliberate fluid restriction converts the violent kinetic energy into thermal energy, providing smooth, controlled deceleration in both directions.
7. Do you provide ongoing maintenance support and replacement parts globally?
Yes. The specific technical parameters of every cylinder we sell are permanently archived via its unique serial number. Whether you require specialized wiper rings, complete high-lifespan seal kits, or heavy-duty mounting bearings years down the line, we dispatch exact replacement parts immediately.
8. Can you customize the stroke for modified cabs or forestry equipment?
Certainly. Our engineering division routinely collaborates with clients requiring unique structural layouts. Supply us with your required closed length, stroke, mounting pin diameter, and anticipated shock load, and we will deliver a customized engineering blueprint for your approval.
Secure Your Operators and Eliminate Costly Downtime Today
Do not allow substandard, rapidly deteriorating commercial parts to jeopardize the safety of your personnel or dictate the financial profitability of your earthmoving operations. Upgrade your fleet to our severe-duty, high-lifespan ROPS cushion cylinders and immediately experience the profound engineering difference that absolute zero-leakage and massive structural rigidity brings to the field.
Connect directly with our specialized fluid power engineering department. We are ready to review your machinery blueprints, provide highly detailed dimensional schematics, and offer a fiercely competitive, factory-direct wholesale quotation.
