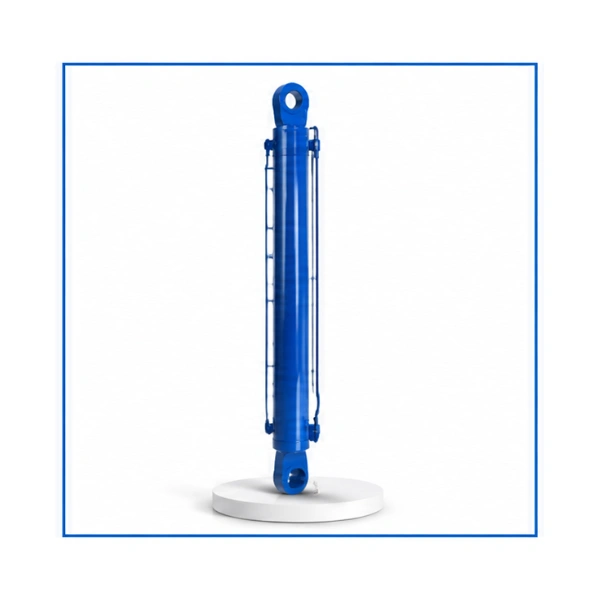

Pile Driving Barge Luffing Cylinder
Pile Driving Barge Luffing Cylinder
A 1,400 mm bore. A 15.5-metre stroke. Nearly 28,500 KN of thrust — enough to swing a 200-tonne pile frame from vertical to working angle while absorbing the shock of every hammer blow. The largest hydraulic cylinder in the offshore range, built for the heaviest pile driving operations on earth.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pile Driving Barge Luffing Cylinder |
| Features | Swing the pile frame and bear dynamic load from hammer impact |
| Bore Diameter | Up to 1,400 mm |
| Rod Diameter | Up to 900 mm |
| Stroke | Up to 15,500 mm |
| Thrust Force | 28,465 KN (at 25 MPa) |
| Working Pressure | 25 MPa |
| Application | Pile Driving Barge |
What the Luffing Cylinder Does on a Pile Driving Barge
A pile driving barge drives steel or concrete piles into the seabed to create foundations for bridges, port structures, offshore wind turbines, and oil platforms. The pile frame — a tall steel structure that guides the pile and holds the hammer — must be tilted (luffed) to the correct angle for each pile. The luffing cylinder swings this frame from near-vertical (for storage/transit) to the working angle (typically 1:6 to 1:12 rake) and holds it steady during driving.
The external forces on this cylinder are not just large — they are violent. Every hammer blow (up to 300 tonnes of impact energy per strike) sends a shockwave through the pile frame and into the luffing cylinder. The cylinder must absorb these repeated shocks without seal failure, rod damage, or mounting fracture — while simultaneously maintaining the frame angle within ±0.5° accuracy. This makes the luffing cylinder the most mechanically demanding offshore hydraulic cylinder in the entire range.
Engineering at 1,400 mm Bore — The Scale Challenge
A 1,400 mm bore cylinder is not simply a scaled-up version of a 500 mm cylinder. At this size, every manufacturing process reaches its physical limits:
The barrel is bored from a solid forging. At 1,400 mm diameter and 15+ metres length, the boring machine must maintain ±0.1 mm tolerance across the full bore — while removing tonnes of steel chips. Few facilities worldwide can handle this bore size.
The 900 mm × 15,500 mm rod weighs approximately 75 tonnes. Straightness must be ≤0.1 mm/m (total TIR ≤1.55 mm). The rod is forged, rough-turned, stress-relieved, precision-ground, and chrome-plated in a continuous process — supported on roller beds to prevent sag under its own weight.
A complete luffing cylinder at this scale weighs 30–80 tonnes and is 15+ metres long. Transport requires special heavy-haul trailers and port crane capacity. Korea Ever-Power coordinates shipping logistics including cradle fabrication, securing, and lifting point design.
Shock and Vibration Resistance
The pile driving hammer strikes the pile head at rates of 30–60 blows per minute. Each strike generates a shockwave that travels through the pile frame structure and into the luffing cylinder mountings. The cylinder must withstand:
- Axial shock loads — transmitted through the trunnion pins. The mounting pins, bushings, and trunnion welds are designed for fatigue life under repeated impact — not just static load capacity.
- Lateral forces from barge motion — the barge rolls and pitches in waves while the pile frame is extended. The cylinder experiences combined axial thrust + lateral bending — a loading case that standard cylinder designs do not account for.
- ️ Hydraulic pressure spikes — each hammer blow creates a transient pressure spike in the cylinder (the column of oil compresses and rebounds). Accumulator damping and reinforced port blocks absorb these spikes without valve or seal damage.
Luffing Cylinder OEM & ODM
Korea Ever-Power manufactures luffing cylinders for pile driving barges of all sizes. Provide the pile frame weight, luffing angle range, hammer type and energy, system pressure, and classification requirement. The factory's deep-hole boring capacity handles bores up to 1,400 mm and lengths up to 16 metres in-house. Complete set including engineering drawings, FEA reports, test certificates, and transport cradles.
Frequently Asked Questions
What Our Customers Say
"The 1,200 mm bore luffing cylinder for our pile driving barge arrived on a custom cradle with clearly marked lifting points. Installation went smoothly — the trunnion dimensions matched our frame exactly. After 4 months of daily pile driving (offshore wind farm foundation), the cylinder shows no seal degradation."
Eng. J. Visser — Marine Construction Manager, Netherlands
"We operate a heavy pile driving barge in the Middle East. The Korea Ever-Power luffing cylinder handles the thermal cycling (50°C daytime, 20°C night) and the continuous hammer vibration without any issues. The accumulator damping system works well — our pressure transducers show clean pressure traces with no spikes."
A. Khalil — Equipment Director, UAE marine contractor
"Massive cylinder — the logistics were more complex than we expected (requires port crane capacity of 80+ tonnes). The cylinder itself is well-made and performs to specification. Recommend coordinating transport and lifting plans with the factory early in the project."
T. Svensson — Project Lead, Swedish marine piling contractor
"Second order from Korea Ever-Power — luffing cylinders for our second pile driving barge. The FEA report on the first order gave our DNV surveyor full confidence, so the second order sailed through classification approval."
Capt. M. da Silva — Operations Manager, Brazilian marine construction
"The bore surface finish (Ra 0.4 µm measured) on the 1,400 mm bore was excellent — smooth and uniform across the full 15-metre length. This level of finishing at this bore size is impressive and contributes directly to seal longevity."
Dr. K. Yamamoto — Quality Assurance Manager, Japanese heavy industry
