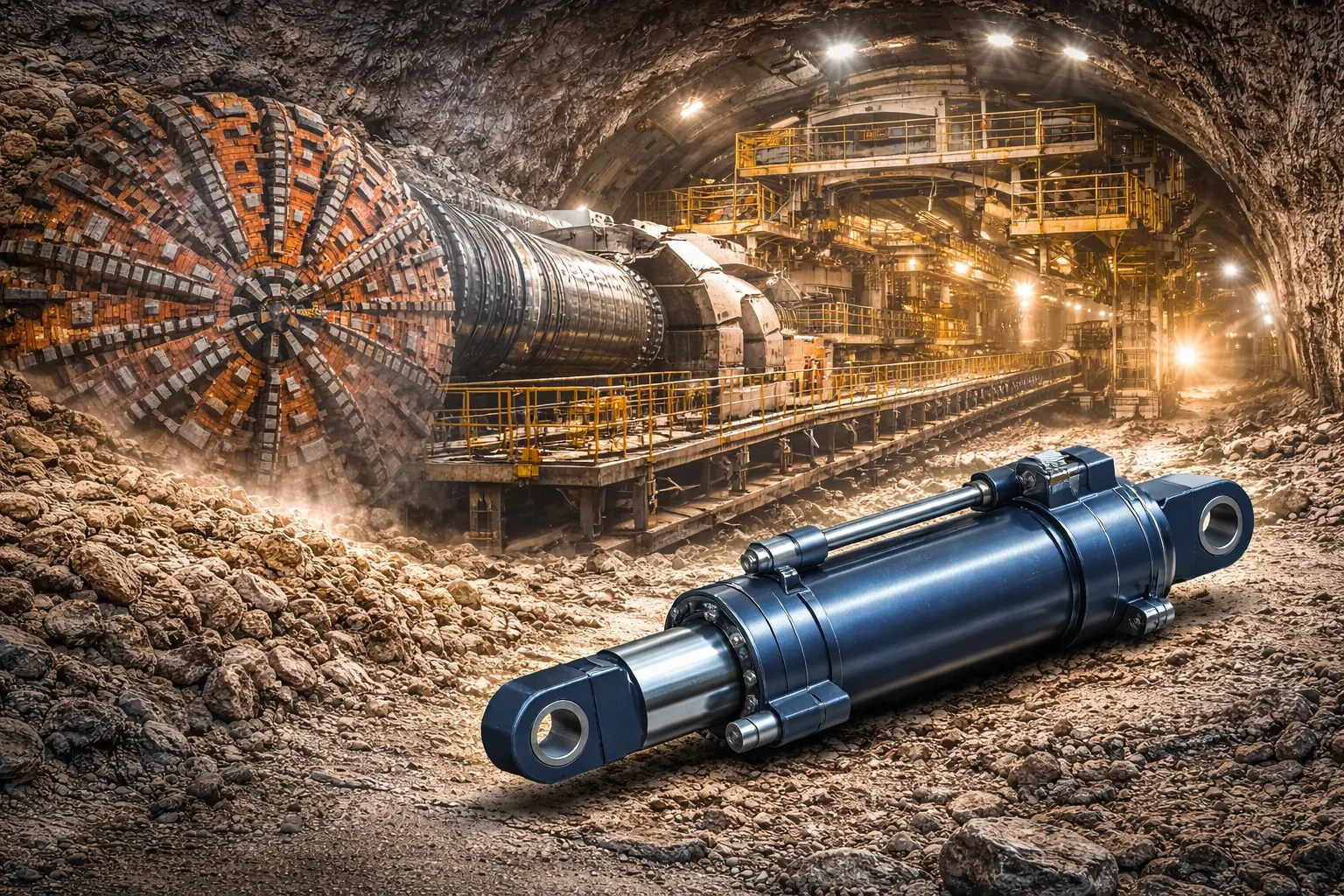

Heavy-Duty Gate Cylinder for Shield Machine TBM
Engineered to conquer severe mud blockage and heavy-load discharge cycles in complex underground excavation projects.
Product Overview & Industrial Value
In the unforgiving environment of underground tunnel excavation, managing the flow of extracted soil is just as critical as the cutting process itself. The muck chamber of a Tunnel Boring Machine (TBM) operates under immense earth and water pressure. To safely and continuously discharge this abrasive mixture, the system relies on a specialized gate cylinder. When this component fails, the entire excavation stops, leading to catastrophic delays and spiraling operational costs.
As a veteran hydraulic cylinder manufacturer, we understand that standard actuators simply cannot survive in this application. The heavy, compacted mud exerts massive static friction and crushing lateral forces on the discharge gates. Our proprietary gate hydraulic cylinder is purpose-built to deliver overwhelming linear force to shear through compacted muck, ensuring smooth, reliable opening and closing of the discharge valves under the most extreme subterranean conditions.
What sets our product apart in the global market is our focus on eliminating the most common failure mode in this application: seal extrusion caused by highly pressurized grit. By integrating robust Q345D steel construction with an advanced PTFE support ring sealing architecture, we provide a product that drastically extends maintenance intervals.
Core Technical Parameters & Customization
Engineering precision begins with exact specifications. The following table outlines the foundational parameters of our TBM muck chamber discharge cylinders. These metrics form the baseline for our heavy-duty units, which can be further customized to match the exact pressure dynamics and spatial constraints of your specific machinery.
| Industry | Equipment Category | Subsystem / Action | Cylinder Designation |
|---|---|---|---|
| Engineering Machinery | Shield Machine TBM | Muck Chamber Discharge | Gate Cylinder |
| Action Mode | Structure Type | Manufacturing Structure | Material System |
| Double Acting Hydraulic Cylinder | Piston Type | Welded Construction | High-Strength Q345D Steel |
| Surface Treatment | Environment Grade | Working Condition | Typical Failure Mode |
| Hard Chrome Plating | Severe Mud & Slag Blockage | Heavy-Load Opening/Closing | Seal Extrusion & Abrasive Wear |
| Recommended Engineering Configuration | |||
| Reinforced Q345D Welded Body + PTFE Support Rings + Anti-Corrosion Chrome Rod | |||
Applied Working Principle in Muck Chambers
To appreciate the robust design of this equipment, one must understand the violent forces at play within a TBM muck chamber. When the earth pressure balance (EPB) machine excavates, the soil is mixed with water and conditioning foams, creating a highly pressurized, abrasive paste. The discharge gate regulates the flow of this paste onto the screw conveyor or muck cars.
Our unit operates as a high-force double acting hydraulic cylinder. During the opening sequence, pressurized hydraulic fluid is directed into the cap end. The fluid pushes against the large surface area of the hydraulic cylinder piston, generating massive thrust. This thrust is necessary because the gate is often wedged shut by compacted rock and dried mud. The rod extends, forcing the heavy steel gate open against extreme static friction.
Conversely, during the closing sequence, fluid is pumped into the rod end. The cylinder must possess enough retraction force to slice through the flowing muck and seal the chamber watertight, maintaining the delicate pressure balance of the tunnel face. The constant, repetitive nature of these heavy-load opening and closing cycles demands an internal architecture free of weak points, which is why standard commercial cylinders fail rapidly in this environment.
Equipment Replacement and Brand Compatibility
When sourcing heavy equipment components, project managers are often burdened by long OEM lead times and inflated pricing. Our specialized engineering team provides a strategic alternative. We manufacture premium drop-in replacement units that perfectly match the dimensional footprints and hydraulic requirements of global machinery brands.
(Please note: The equipment brand names mentioned below are used strictly for reference regarding dimensional compatibility and fitment. We do not claim any affiliation, endorsement, or trademark rights associated with these respective brands.)
- European & North American Platforms: Fully compatible replacements for muck gate and articulation systems on Herrenknecht, Robbins, and Lovat shield machines.
- Asian Manufacturing Platforms: Dimensionally matched to replace original components on Hitachi Zosen, Komatsu, CREG (China Railway Engineering Equipment Group), and CRCHI tunneling equipment.
- Comprehensive Upgrades: Whether you require a specialized lift cylinder for heavy erection equipment or high-impact hydraulic rams for material handlers, our catalog covers all bases. Review our broader capabilities in our main product directory.
Five Pillars of Technical Superiority
Evaluating a hydraulic cylinder price requires looking beyond the initial capital expenditure. The true cost is measured in equipment lifespan and prevented downtime. Here is how our engineering eliminates the structural vulnerabilities found in standard hydraulic actuators:
I. PTFE Support Ring Anti-Extrusion Technology
The most common failure in muck gate applications is seal extrusion, where intense pressure forces the soft elastomer seals into the microscopic gaps between the piston and the barrel, shearing them apart. We counteract this by utilizing specialized Polytetrafluoroethylene (PTFE) support rings. These highly rigid, low-friction backups bracket the main seals, preventing them from deforming under high-pressure spikes and drastically increasing seal life.
II. Heavy-Duty Q345D Welded Construction
Muck gates impart severe lateral forces. We construct our cylinder barrels and mounting trunnions using Q345D low-alloy, high-strength structural steel. The “D” grade ensures excellent impact toughness even at low temperatures. Our automated submerged arc welding process guarantees deep penetration and zero porosity, preventing structural cracking under heavy loads.
III. Thick-Film Hard Chrome Plating
The piston rod is constantly exposed to abrasive rock dust and acidic groundwater. We apply a proprietary thick-film hard chrome plating process to the rod surface. This creates a micro-cracked finish that retains hydraulic lubricating oil while presenting a virtually impenetrable barrier against mechanical scratching and chemical corrosion.
IV. Ultra-Low Friction Guiding Systems
To combat the massive side-loads inherent in gate operation, our cylinders are equipped with widened bronze or composite wear bands on the piston and gland. These bands prevent metal-to-metal contact between the rod and the barrel, absorbing lateral shocks and ensuring ultra-smooth stroke actuation even when the gate is misaligned due to mud packing.
V. Optimized Fluid Porting for Thermal Stability
Rapid, repetitive opening and closing of a heavy gate generates significant fluid heat. Our engineers design oversized inlet and outlet ports with streamlined internal flow paths. This reduces hydraulic throttling and turbulence, keeping the fluid temperature stable and protecting the internal hydraulic parts from thermal degradation over prolonged shifts.
Autonomous Manufacturing & Quality Control
Quality cannot be inspected into a product; it must be built into it. Unlike simple assembly houses, we are a fully integrated hydraulic cylinder manufacturer. We control the metallurgical integrity of our raw steel, the precision of our CNC machining, and the rigor of our final testing protocols.
- Material Traceability: Every batch of Q345D steel arrives with strict metallurgical certification. We conduct independent ultrasonic flaw detection to ensure no internal voids exist before machining commences.
- Precision Honing: The interior of our cylinder barrels is CNC honed to a mirror-like finish (Ra 0.2 to 0.4 micrometers). This hyper-smooth surface is essential to maximize the lifespan of the PTFE seals during rapid stroking.
- 100% End-of-Line Testing: Before leaving our facility, every single gate hydraulic cylinder is subjected to a hydrostatic pressure test exceeding 150% of its rated working pressure. We monitor for internal bypass leakage, measure breakaway friction, and ensure flawless functional integrity.
Broad Industry Applications
While optimized for the brutal conditions of TBM muck chambers, the ruggedized design of these cylinders makes them the ideal choice for any industrial application requiring heavy load actuation in contaminated environments. Discover more via our construction machinery solutions hub.
Heavy Metallurgy & Mining
Ideal for operating heavy furnace doors, slag discharge gates, and ore crusher feed mechanisms where heat and abrasive dust quickly destroy standard actuators.
Material Handling & Logistics
Provides reliable force for bulk material hopper gates, ship loader chutes, and automated port logistics machinery facing constant salt-spray exposure.
Hydropower & Renewable Energy
Utilized in dam radial gates, penstock shut-off valves, and trash rack cleaners requiring decades of submerged reliability.
Specialty Custom Scenarios
We routinely design bespoke heavy-duty hydraulic components for marine salvage equipment, offshore oil rigs, and military engineering vehicles.
Comparative Analysis: High-Performance vs. Standard Cylinders
Procuring cheap commercial cylinders for heavy engineering ultimately results in massive financial losses due to unplanned downtime. Below is a stark comparison of why our specialized design outlasts generic alternatives in the field.
| Technical Parameter | Standard Market Cylinder | Our High-Performance Gate Cylinder |
|---|---|---|
| Material Integrity | Basic Q235 carbon steel tubing; prone to fatigue. | High-strength Q345D alloy; excellent impact resistance. |
| Sealing Architecture | Standard NBR O-rings; susceptible to rapid extrusion. | Multi-stage PTFE support rings prevent blowout under pressure. |
| Welding Quality | Manual arc welding; inconsistent penetration. | Automated submerged arc welding; zero porosity guaranteed. |
| Rod Treatment | Thin commercial chrome plating; rusts easily. | Thick-film micro-cracked hard chrome; highly anti-corrosive. |
| Maintenance Frequency | Requires frequent seal replacement and downtime. | Extended lifecycle; maximizes continuous operational uptime. |
Verified Engineering Case Studies
Our commitment to rugged reliability is proven in the field. Below are five recent project successes, showcasing how our engineering interventions solved critical operational bottlenecks for our clients in the Asia-Pacific region.
Case 1: Seoul Underground Expressway Expansion (South Korea)
Client: Tier 1 Korean Civil Engineering Consortium
Application: TBM Muck Chamber Discharge Gate
Connection Method: The procurement director found our specifications online while desperately searching for viable hydraulic cylinder repair options due to recurring OEM seal failures.
Result: We supplied eight reinforced gate cylinder assemblies within a 35-day rush schedule. The PTFE support rings completely resolved the extrusion issue caused by the highly compacted granite slurry.
“Our OEM parts were blowing seals every 300 meters. Your engineering team diagnosed the extrusion problem perfectly. The new cylinders have pushed past 2,000 meters without a single leak, and the hydraulic cylinder price was highly competitive.” – Park J.H., Lead Mechanical Engineer (October 2025)
Case 2: Busan Port Bulk Material Terminal (South Korea)
Client: Port Logistics & Automation Firm
Application: Heavy Hopper Discharge Gates for Iron Ore
Connection Method: Referred to us by an industry partner familiar with our heavy-duty manufacturing capabilities.
Result: The coastal environment was rapidly rusting standard cylinder rods. We implemented our micro-cracked hard chrome plating over Q345D steel. Equipment longevity increased by over 60%.
“Salt spray and iron dust are a lethal combination for hydraulics. Switching to your specialized cylinders eliminated our monthly breakdown nightmare.” – Kim S.W., Maintenance Director (January 2026)
Case 3: Tokyo Deep Stormwater Tunnel (Japan)
Client: Major Japanese Subterranean Contractor
Application: Slurry Shield Machine Pipeline Valves
Connection Method: Contacted our technical desk via our website looking for expert advice on fixing hydraulic cylinders operating under 6 bar of hydrostatic mud pressure.
Result: We designed a custom double acting hydraulic cylinder with oversized porting to handle the rapid actuation required by the slurry pipeline safety valves.
“The machining tolerances on these units are impeccable. They handled the deep-water pressure spikes flawlessly. True Japanese-level quality from your factory.” – H. Tanaka, Project Manager (November 2024)
Case 4: Incheon Industrial Waste Processing Plant (South Korea)
Client: Environmental Infrastructure Operator
Application: Heavy Shredder Feed Gate Actuation
Connection Method: Met our sales engineers at an industrial machinery expo in Seoul.
Result: Supplied rugged hydraulic rams to replace weak pneumatic systems that couldn’t handle the sheer weight of compressed industrial waste. Upgraded to Q345D welded bodies.
“We needed brute force and reliability. Your cylinders crash through compacted waste without a single stutter. Excellent build quality.” – Lee M.K., Plant Operations Chief (August 2025)
Case 5: Hanoi Metro Line 3 Extension (Vietnam)
Client: International Joint Venture Subcontractor
Application: Muck Car Dumping Gate Actuators
Connection Method: Searched for reliable Asian suppliers capable of fast regional shipping and robust engineering.
Result: Replaced an entire fleet of failing generic cylinders on the underground muck transport trains. The new units handled the heavy, sticky clay geology perfectly without seal blowout.
“Logistics were incredibly fast, and the drop-in fit saved us weeks of modification work. We will be using your factory for all our future tunneling needs.” – Tran V., Site Supervisor (February 2026)
Frequently Asked Questions
To assist our international clients in their technical evaluation, we have compiled the most common questions our engineering department receives regarding our heavy-duty gate actuation systems.
What is the typical manufacturing lead time for custom gate cylinders?
For standard Q345D welded configurations based on our existing engineering templates, production takes approximately 30 to 45 days. For highly specialized dimensions or large fleet replacement orders requiring custom tooling, lead times are typically 45 to 60 days. We always try to accommodate emergency breakdown schedules.
Can you manufacture direct replacements for older, discontinued machinery?
Yes. As a primary hydraulic cylinder manufacturer, our engineering team excels at reverse engineering. If you can provide mechanical drawings, 3D CAD models, or even ship the damaged unit to our facility, we can manufacture a dimensionally identical unit with upgraded internal sealing technology.
How do PTFE support rings prevent seal extrusion?
Under extreme pressure, soft polyurethane or nitrile seals can be squeezed into the tiny clearance gap between the piston and the barrel wall. PTFE support rings are made of a dense, tough material that sits behind the primary seal. It blocks the gap, giving the soft seal a rigid backing to press against, completely preventing extrusion.
Do you provide support for fixing hydraulic cylinders on-site?
While our units are designed for minimal maintenance, we do provide comprehensive technical documentation, including exploded assembly views and torque specifications. We also supply OEM-grade seal replacement kits. For complex issues involving fixing hydraulic cylinders, our technical desk offers remote engineering support to your maintenance team.
Are these cylinders suitable for underwater or marine use?
Yes. While the standard configuration is built for mud and groundwater, we can upgrade the specifications for marine environments. This includes marine-grade epoxy painting, stainless steel 316L or specialized nickel-chrome plating on the rods, and dual-lip scraper seals to prevent salt ingress.
How do you maintain a competitive hydraulic cylinder price without sacrificing quality?
Our cost efficiency comes from vertical integration. By performing our own steel forging, precision CNC machining, welding, and chrome plating within a single massive facility, we eliminate middleman markups and reduce supply chain logistics costs. We pass these savings directly to our B2B partners.
Ready to Eliminate Costly Machinery Downtime?
Stop settling for generic commercial components that fail under pressure. Secure your project’s timeline by integrating heavy-duty hydraulic actuation designed specifically for the world’s most demanding underground environments.
Submit your technical drawings or operational requirements to our engineering team for a rapid, comprehensive capability review and quotation.
