Grain Tank Lift & Tilt Cylinder | EP-HCYY11112035 Model
Grain Tank Lift & Tilt Cylinder
EP-HCYY11112035 · Φ65mm · Stroke 607mm · 18 MPa · 22 kg
The cylinder that empties the grain tank on a combine harvester. After filling during harvest, the grain tank must be lifted and tilted to pour the grain into a waiting trailer or truck. The lift/tilt cylinder raises the tank through a 607 mm stroke — pivoting it from its storage position to a steep unloading angle. At 22 kg and 823 mm installation distance, it fits within the compact space behind the operator's cab on modern combine harvesters.
Technical Specifications

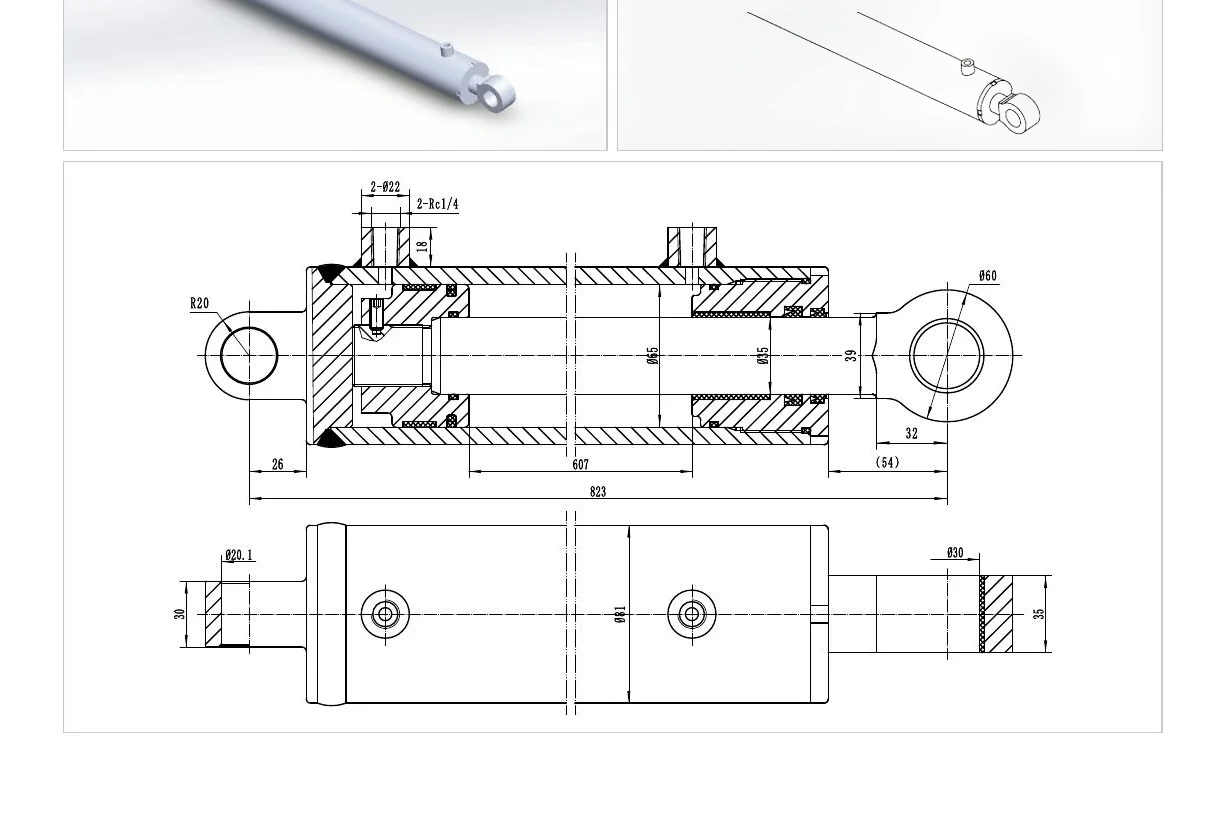

▲ Dimension Drawing
| Parameter | Specification |
|---|---|
| Product Name | Grain Tank Lift & Tilt Cylinder |
| Cylinder Model | EP-HCYY11112035 |
| Bore (D) | Φ65 mm |
| Rod (d) | Φ35 mm |
| Stroke (S) | 607 mm |
| Installation Distance (L) | 823 mm |
| Working Pressure | 18 MPa |
| Maximum Withstand Pressure | 27 MPa |
| Weight | 22 kg |
| Application | Agricultural Machinery |
▲ Grain Tank Lift & Tilt Cylinder | EP-HCYY11112035 ModelHow the Grain Tank Cylinder Works During Harvest
During harvesting, the combine fills its on-board grain tank as it moves through the field. When the tank is full (typically 5,000–10,000 litres depending on the combine model), the operator positions the combine alongside a grain trailer or truck and activates the grain tank unloading system.
The lift/tilt cylinder raises the grain tank from its level storage position, pivoting it on a hinge at the base. As the tank tilts, gravity feeds the grain through the unloading auger or directly over the tank edge into the waiting trailer. The 607 mm stroke provides enough angular movement for complete emptying — no grain left in the corners of the tank.
The unloading cycle takes approximately 2–3 minutes. The Φ65 bore at 18 MPa produces approximately 60 kN of lifting force — sufficient to raise a full grain tank weighing 5,000–8,000 kg (grain weight alone, at approximately 750 kg/m³ for wheat). After emptying, the cylinder retracts, lowering the tank back to its level position for the next filling pass. Browse the full mobile machinery hydraulic cylinder range.
Harvest Conditions: Dust, Vibration, and Time Pressure
During grain harvest, the combine operates in dense crop dust — fine particles of chaff, pollen, and soil. The cylinder rod is exposed to this abrasive environment every time it extends. Hard-chrome plating and high-quality rod seals are essential for preventing dust ingress into the hydraulic system.
The combine's threshing mechanism generates constant vibration throughout the machine. The grain tank cylinder must hold the tank securely in both the stored (level) and unloading (tilted) positions despite this vibration — any drift would cause uncontrolled grain spillage or structural stress on the tank mountings.
The grain harvest window is often only 2–4 weeks per crop. A cylinder failure during harvest means the combine cannot unload — halting the entire harvest operation. Reliability during this critical period is non-negotiable.
Agricultural Machinery Cylinder Family
Korea Ever-Power manufactures hydraulic cylinders for combine harvesters and agricultural trailers:
Grain Tank Lift/Tilt Cyl. Φ65, 22kg
Trailer Plate Lift Cyl. Φ40, 4.5kg
Why Choose Korea Ever-Power
Korea Ever-Power is a professional hydraulic cylinder manufacturer and supplier, specialising in forklift hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, offshore cylinders, and industrial engineering cylinders. Our production facilities are equipped with composite machining centres, multi-station welding robots, automated assembly lines, specialised cylinder testing machines, and a dedicated quality inspection area — ensuring every cylinder meets OEM-grade performance standards.
Korea Ever-Power forklift tilt cylinders are manufactured to the same specifications and quality standards as original equipment cylinders fitted to major forklift brands worldwide. Every cylinder is 100% hydrostatic pressure tested, dimensionally inspected, and shipped with a test certificate and seal kit. Contact the Korea Ever-Power team for pricing and lead time.
