Electric Furnace Tipping Cylinder

Electric furnace tipping cylinder — the actuator that tilts the entire electric arc furnace to pour 100–200 tonnes of molten steel into the ladle at 1,600 °C. The lock cylinder (#15) holds the furnace stationary during melting; this cylinder releases that restraint and makes it tilt — forward to tap steel into the ladle, backward to pour slag in the opposite direction. Tipping speed is not fixed: the operator controls the tilt angle continuously via proportional hydraulic valves, adjusting the pour rate in real time to match the ladle fill, minimise temperature loss, and control slag carryover. Bore 320 mm, rod 300 mm (93.8% ratio), 14 MPa, 989 KN. Korea Ever-Power. ISO 9001. OEM & ODM.
Шифра производа: 4e10954227d0 Категорија:

Electric Furnace · Tipping Cylinder
Controlled Steel Pour

The Controlled Pour
of Liquid Steel

Every 40–70 minutes, the electric arc furnace completes a melt. The lock cylinder disengages. The tipping cylinder takes over — tilting the entire furnace body to pour 100–200 tonnes of liquid steel at 1,600 °C into the waiting ladle below. Too fast and the metal splashes. Too slow and the steel temperature drops below specification. The operator's hand is on the proportional valve; the tipping cylinder translates that command into the controlled rotation of a 500-tonne furnace.

989 KN
Thrust
320mm
Bore
300mm
Rod (93.8%)
2-Way
Tap + Slag Tilt

Two Directions of Tilt — Steel Forward, Slag Backward

The electric furnace tilts in two opposite directions for two different purposes — and the tipping cylinder drives both movements from its position on the furnace tilt cradle.

Forward Tilt — Steel Tapping (40–45°)

The furnace tilts forward (toward the tapping spout) to pour the molten steel into the ladle below. The tilt angle starts at 0° (upright) and progresses to 40–45° as the furnace empties. The operator increases the angle gradually — matching the pour rate to the ladle's filling capacity and maintaining the steel temperature above the minimum casting specification. A typical tap takes 2–5 minutes for 100–200 tonnes of liquid steel.

Backward Tilt — Slag Removal (10–15°)

After the steel is tapped, the furnace tilts in the opposite direction — backward, toward the slag door — to pour the remaining slag into a slag pot. Slag is lighter than steel and floats on top of the melt; the backward tilt allows the slag to flow over the rear sill without carrying steel with it. The backward tilt angle is shallower (10–15°) because the slag volume is smaller and the slag door opening is positioned higher than the tapping spout.

The tipping cylinder must produce thrust in both directions — extending to tilt forward, retracting to tilt backward (or vice versa, depending on the cylinder mounting geometry). This is why the cylinder is double-acting with full pressure capability on both ports. Korea Ever-Power engineers the cylinder and the tilt mechanism geometry together as part of the electric furnace cylinder family.

Electric Furnace Tipping Cylinder

Technical Specifications

Parameter Value
Product Electric Furnace Tipping Cylinder
Function Tilt furnace for steel tapping and slag removal
Bore Diameter 320 mm
Rod Diameter 300 mm (93.8% of bore)
Working Pressure 14 MPa
Maximum Thrust 989 KN
Tilt Directions Forward (steel tap, 40–45°) + Backward (slag, 10–15°)
Certification ISO 9001 · 100% hydrostatic tested

Tipping Speed Determines Steel Quality

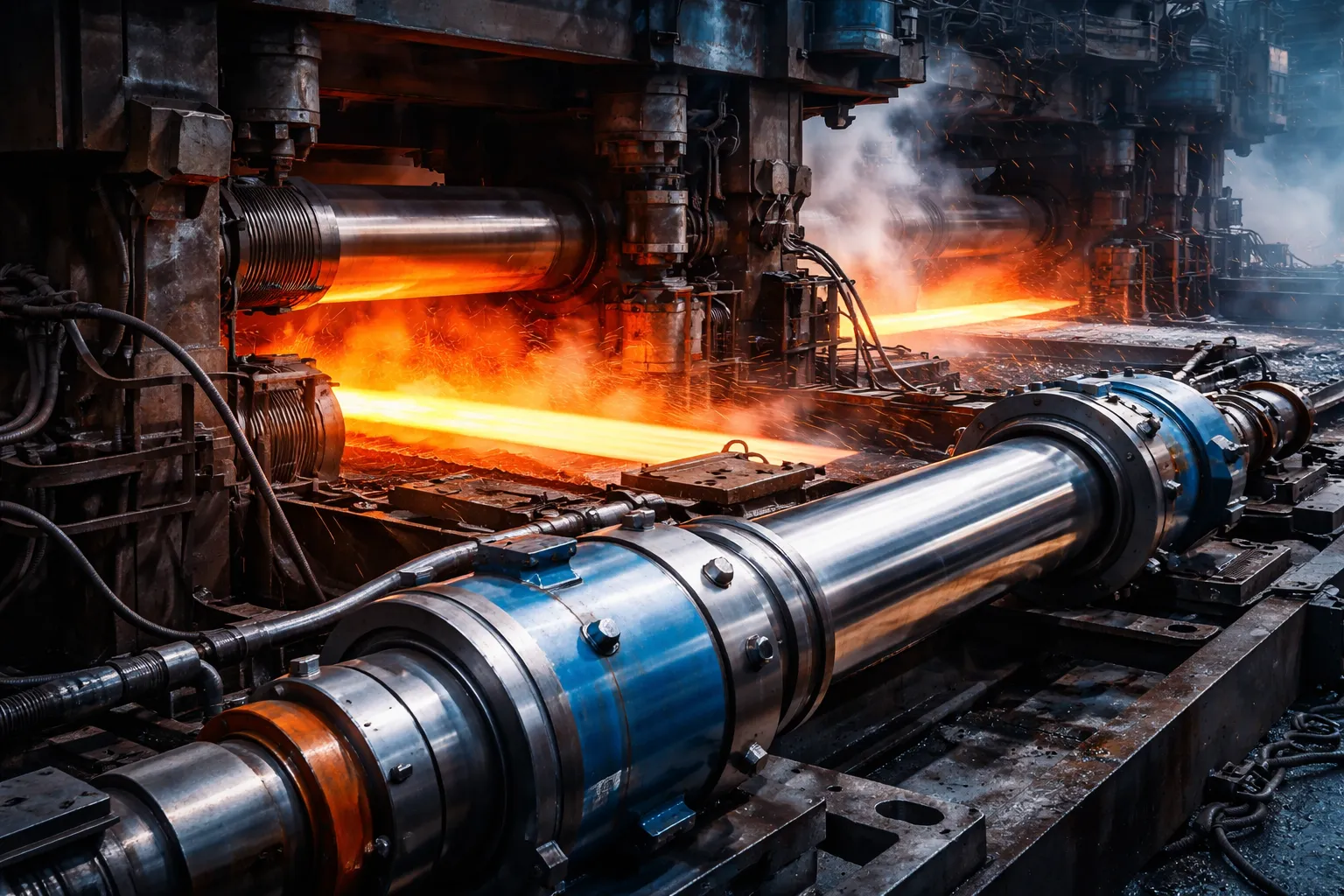

Tipping cylinder controlling pour speed for steel quality

The tipping cylinder does not simply dump the metal — it controls the pour rate, which directly affects the quality of the steel reaching the ladle. This is why proportional speed control is essential, and why simple on/off hydraulic valves are never acceptable for tipping service.

Temperature loss during tapping. Every second of tapping time costs 1–3 °C of steel temperature. A 200-tonne tap that takes 5 minutes instead of 3 minutes loses an additional 120–360 °C of superheat — which may drop the steel below the minimum casting temperature, requiring reheating in the ladle furnace (energy waste, schedule delay).

Oxygen pickup during tapping. As the molten steel stream falls through air into the ladle, it absorbs oxygen — which must later be removed by adding expensive deoxidisers (aluminium, silicon). A fast, compact stream (steep tilt angle, high flow rate) exposes less surface area to air than a slow, thin stream (shallow tilt, low flow). The tipping cylinder's angle control directly affects the oxygen content of the tapped steel.

Slag carryover control. Near the end of tapping, the slag layer approaches the tapping spout. The operator must slow and then stop the tilt at precisely the right moment — pouring the last of the steel while keeping the slag inside the furnace. Tilting too far carries slag into the ladle (contaminating the steel); stopping too early leaves valuable steel in the furnace (yield loss). This final few degrees of tilt control is the most skill-dependent moment in EAF steelmaking — and the tipping cylinder must respond to the operator's command without lag, overshoot, or hesitation.

Engineering Insight — Why On/Off Valves Cannot Do This Job

A standard directional valve has three states: extend, retract, or stop. The tipping cylinder needs infinitely variable speed control — fast at the start of the tap (to minimise temperature loss), progressively slower as the furnace empties (to control the pour stream), and extremely precise in the final degrees (to separate steel from slag). This requires proportional hydraulics.

Proportional flow valve

A proportional valve on the tipping cylinder circuit adjusts the flow to the cylinder continuously — from zero to maximum — in response to the operator's joystick or the automated tapping control system. The flow determines the tilt speed. The operator can tilt at 2°/second at the start and 0.1°/second at the end — a 20:1 speed range — from the same cylinder and the same valve.

Counterbalance valve for gravity assist

As the furnace tilts forward, the centre of gravity of the molten metal shifts toward the tapping spout — creating a gravity moment that tries to accelerate the tilt. Without a counterbalance valve, the furnace would tip faster and faster as it tilts further — a runaway pour. The counterbalance valve on the rod side of the tipping cylinder provides a controlled back-pressure that prevents gravity-assisted runaway, ensuring the tilt speed follows the operator's command at all times.

Emergency stop = immediate hold

An emergency stop command must lock the furnace at its current tilt angle — instantly, without drift. The tipping cylinder's circuit includes a pair of pilot-operated check valves that seal both ports when the proportional valve is de-energised, trapping the oil and freezing the cylinder's position. No coast, no creep, no additional tilt after the stop command. Contact the hydraulic cylinder engineering team for tipping control circuit specifications.

The Tapping Zone — Where the Cylinder Works

Tipping cylinder operating in tapping zone environment

The tipping cylinder is mounted on the furnace tilt cradle — directly below the furnace shell, in the tapping zone. This is the most hostile location in the melt shop: radiant heat from the furnace shell above, splashing steel and slag during tapping, forge spray (the cooling water applied to the tapping spout), and accumulated scale and debris on the tilt platform.

The rod surface is particularly vulnerable. During tapping, molten metal droplets and slag particles can land on the exposed rod. A single steel splash that bonds to the chrome surface creates a raised point that scores the rod seal on the next stroke — initiating a leak that progressively worsens until seal replacement. Korea Ever-Power specifies a telescopic rod shroud or bellows boot as standard for tipping cylinders to prevent splash contact with the rod.

The same thermal protection features used on the cover lifting cylinder (#14) — heat shields, water-cooled barrel jacket (optional), FKM seals, and fire-resistant hydraulic fluid compatibility — apply to the tipping cylinder. The tipping cylinder's proximity to the tapping stream makes it even more splash-exposed than the cover lifting cylinder, which is mounted higher on the furnace support structure.

Tipping cylinder installed on EAF tilt cradle

Manufacturing

Korea Ever-Power tipping cylinder manufacturing

The 320 mm bore and 300 mm rod (93.8% ratio) share the same structural-column design philosophy as the cover lifting cylinder (#14) — the massive rod supports the furnace weight component that acts through the tilt mechanism. Korea Ever-Power machines the rod from forged steel bar, stress-relieves after rough machining, and chrome plates to 80–100 µm for splash resistance. The bore is honed to Ra 0.2–0.4 µm for consistent proportional control at low tilt speeds. The cylinder is hydrostatic tested at 1.5× working pressure (21 MPa) and functionally tested for proportional speed control across the full tilt range — verifying smooth, lag-free response to the proportional valve signal at all speeds from 0.1°/s to the maximum tilt rate.

OEM & ODM

What You Provide

Furnace capacity (tonnes), tilt mechanism geometry (cradle radius, pivot axis position), required tilt angles (forward and backward), tilt speed range, stroke, distance from cylinder to tapping stream (for splash protection design), cooling water availability, fire-resistant fluid requirement, and the furnace tilt cradle drawing.

What the Factory Delivers

Engineering drawing with bore, rod (column-strength verified), stroke, seal and fluid specification, rod shroud detail, counterbalance valve specification, and proportional control circuit recommendation. Hydrostatic + proportional speed test certificate. Seal kits. Browse the complete electric furnace cylinder family.

FAQ

How does the tipping cylinder coordinate with the lock cylinder?

Through hardwired interlocks: the lock cylinder displacement sensor must confirm "fully disengaged" before the tipping cylinder's proportional valve is permitted to energise. Conversely, the tipping cylinder's position must confirm "furnace upright" before the lock cylinder is permitted to re-engage. These interlocks are hardwired relay logic — not software-only — so a control system crash cannot bypass them.

What prevents the furnace from tipping too far?

Three layers: (1) the proportional valve limits the maximum flow to the cylinder, capping the tilt speed; (2) mechanical stops on the tilt cradle physically limit the maximum tilt angle to the designed forward and backward limits; (3) a position sensor on the tipping cylinder (or on the tilt mechanism directly) feeds the current tilt angle to the control system, which commands the proportional valve to zero when the target angle is reached.

How many tipping cylinders per furnace?

Typically 2 — one on each side of the tilt cradle, operating synchronously to tilt the furnace evenly. The paired cylinders share a common proportional valve (or synchronised separate valves) and are manufactured as a matched set with verified stroke and speed synchronisation. The same matched-pair principle applies across the Korea Ever-Power hydraulic cylinder range, including dual-cylinder forklift mast systems and dual-cylinder dump truck hoists.
